KH30
High Vacuum Fume and Dust Extraction Unit
The HiVent KH30 mobile high vacuum unit is a professional product with a cleanable cartridge filter. It can be used in MMA, MIG/MAG, and TIG welding processes, as well as grinding operations.
Innovative Design
KH30 was designed in a compact structure for use in heavy-duty conditions.
The cartridge filter, which can be cleaned fully automatically with jet-pulse, provides significant savings in operating costs.
To prevent coarse particles and sparks from directly reaching the filter, there is an integrated impact plate inside the body.
The blower with high efficiency EC technology provides energy saving and high efficiency.
There is an automatic flow rate adjustment system depending on the filter fill level.
Flow rate adjustment can also be made manually.
An automatic start/stop system that detects the welding arc is offered as an option.

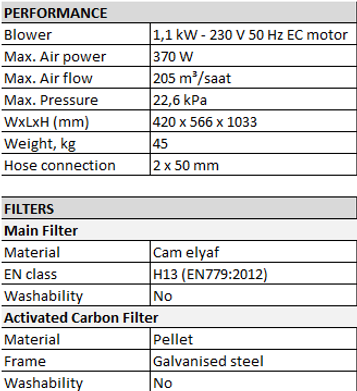

Technical Data
656.98.5430
Motor power: 1,1 kW
Voltage: 230 V AC / 50 Hz, EC motor
Max. airflow: 205 m³/h
Max. air power: 370 W
Max. pressure: 22,6 kPa
Hose connection: 2 × 50 mm
Fan speed: 2810 rpm
Dimensions (W×L×H): 420 × 566 × 1033 mm
Weight: 45 kg
Main filter: HEPA H13 (EN 1822) cartridge ×2, polyester BICO + PTFE membrane
Filter area: 2,2 m² (2 × 1,1 m²)
Filter cleaning: Automatic jet-pulse
